A Comprehensive Guide to the Parts of a Western Saddle

Parts of a Western saddle

A Western saddle has eight main parts: the tree, horn, gullet, cantle, skirt, fenders, stirrups and rigging. The tree is the internal frame everything else is built on, and its shape determines whether the saddle fits your horse.

Each part has a job — some hold the saddle together, some position the rider, and some spread the rider's weight across the horse's back. Knowing which is which makes it far easier to judge fit, describe a problem to a saddle fitter, or shop for the right gear. This guide covers all eight, what they do, and why the tree matters more than anything else on the saddle.

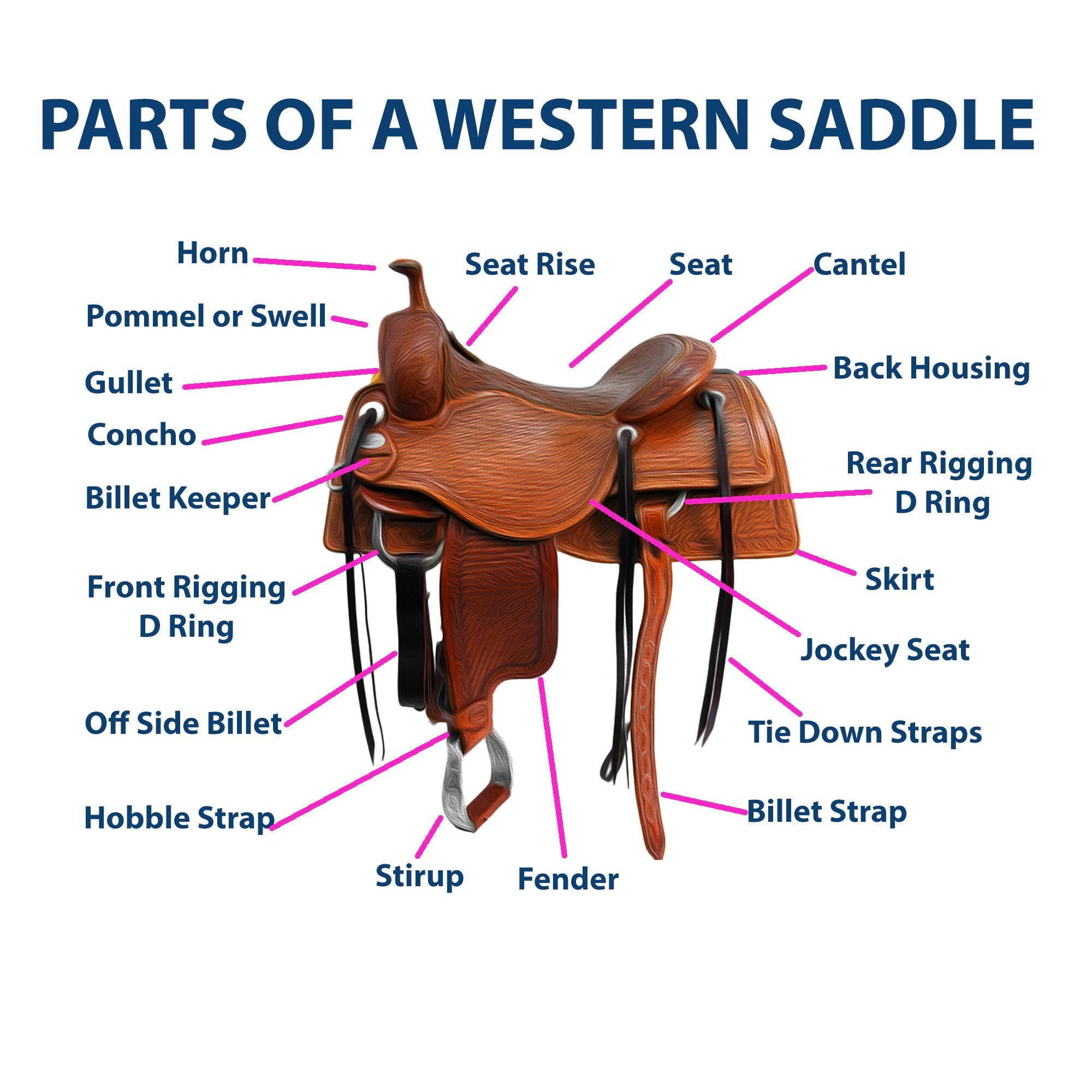

Anatomy of a Western saddle: the 8 main parts

The parts below are listed roughly in the order a rider encounters them, starting with the frame hidden inside the leather and working outward to the parts you touch.

1. Saddle tree

The saddle tree is the structural foundation of a Western saddle — the internal frame that everything else is built onto. It gives the saddle its shape, carries the rider's weight, and spreads that weight across the horse's back.

Trees are traditionally made of wood wrapped in rawhide, which is stretched on wet and shrinks tight as it dries to form a strong, slightly flexible shell. Modern trees may also be made from fiberglass or molded synthetic materials, which are lighter and more consistent from one saddle to the next.

A tree has four working sections:

• The bars — two long pieces that run along either side of the horse's spine. The bars carry nearly all of the weight and are the single most important element of saddle fit. Their angle and spread must match the shape of the horse's back.
• The fork (or swell) — the front arch of the tree that sits over the withers. The horn mounts on top of it.
• The cantle — the rear arch that forms the back of the seat.
• The horn — mounted on the fork, covered separately below.

Because the bars determine how pressure is distributed, a tree that doesn't match the horse's conformation cannot be fixed by tightening the cinch or adding padding alone. Tree width is usually described by gullet measurement — semi-quarter horse, quarter horse, full quarter horse and wide — though these terms are not standardized between makers.

2. The horn

The horn is the upright post at the front of the saddle, mounted on the fork. It is the most recognizable feature of a Western saddle and the main thing that distinguishes it from an English one.

Its original purpose is working cattle: a roper dallies — wraps — the rope around the horn to hold a steer. It also serves as a handhold when mounting, a place to hang a rope or canteen, and a point of security for green riders. Horn size and shape vary by discipline. Roping saddles use a thick, low horn built to take repeated hard pulls; barrel racing saddles often use a taller, thinner horn that's easy to grab without getting in the rider's way.

3. The gullet

The gullet is the tunnel-shaped opening beneath the fork that arches over the horse's withers and spine. Its job is clearance: the spine should never bear weight or contact the saddle.

Gullet width and height determine which horses a saddle can fit. Narrow, high-withered horses such as many Arabians and Thoroughbreds need a narrower gullet with more height; broad, flat-backed horses like many Quarter Horses and drafts need a wider one. You should be able to fit two to three fingers between the gullet and the withers with a rider mounted. Less than that and the saddle is likely pressing on the withers; much more and the saddle may be perched too high and narrow.

4. The cantle

The cantle is the raised back edge of the seat. It supports the rider's lower back, helps hold position during stops, turns and rough ground, and defines how deep the seat feels.

Cantle height is a matter of discipline and preference. Roping saddles typically use a low cantle so the rider can dismount quickly. Trail and ranch saddles often use a taller cantle for support over long hours. Barrel racing saddles use a tall, sharply angled cantle to keep the rider seated through fast turns.

5. The skirt

The skirts are the large leather panels beneath the tree that lie against the horse's back, usually lined with sheepskin or synthetic fleece. They spread the pressure from the bars over a wider area and protect the horse from the hardware above.

Skirt shape affects which horses a saddle suits. Square skirts are traditional on ranch and roping saddles. Rounded skirts are shorter and better suited to short-backed horses, where a long square skirt can interfere with the hips. Skirt length should stop well before the horse's last rib.

6. The fenders

The fenders are the wide leather panels that hang down each side of the saddle between the rider's leg and the horse. They are not the same as the stirrups — the fenders are the broad leather; the stirrups hang at the bottom of them.

Fenders serve two purposes: they protect the rider's legs from the horse's sweat and sides, and they hold stirrup position. They adjust for leg length through a buckle on the stirrup leather hidden underneath, and they can be twisted and set so the stirrup hangs square to the horse rather than fighting the rider's ankle.

7. The stirrups

The stirrups are the foot supports hanging at the bottom of the fenders. They carry the rider's weight, provide balance, and give leverage for mounting.

They are made of wood bound with rawhide or metal, aluminum, or synthetic composite, and come in several styles — the wide-bottom bell stirrup, the roper, the visalia and the oxbow, which is narrow and rounded and favored by bronc and ranch riders. Stirrup length should let the rider stand with a slight bend in the knee, heels down and lower than the toes.

8. The rigging

The rigging is the system of rings, straps and hardware that connects the saddle to the cinch and holds it on the horse. It is attached to the tree, so its position controls where the cinch pulls.

Rigging is described by position, measured from the fork toward the cantle:

• Full — the cinch hangs directly below the fork; common on roping saddles, where the pull is forward and hard.
• 7/8 and 3/4 — progressively further back, the most common all-around positions.
• Center-fire — midway between fork and cantle, traditional on some ranch saddles.

Saddles may be single-rigged, with one cinch, or double-rigged with a front cinch and a rear flank cinch. Double rigging is standard for roping, where a rear cinch keeps the back of the saddle from lifting under load. Rigging may be attached in-skirt for a lower-bulk feel under the leg, or on a flat plate attached to the tree for maximum strength.

How saddle anatomy relates to fit

Almost every fit problem traces back to the tree — specifically the angle and spread of the bars against the horse's back. Signs a saddle may not be fitting well include dry spots in an otherwise even sweat pattern, white hairs appearing at the withers or along the bar line, soreness when the back is palpated, resistance to being saddled, or a saddle that consistently rolls or slides.

Padding can help in some situations and not in others. A correction or shimmed pad can fill gaps where a saddle is slightly too wide, where a horse's topline has changed with age or conditioning, or where the withers need extra clearance. It cannot make a badly shaped tree fit, and it cannot correct a saddle that bridges severely or sits too narrow — adding padding to a saddle that is already too tight makes the pressure worse, not better.

If your horse shows signs of pain, persistent dry spots or white hairs, have the saddle evaluated by a qualified saddle fitter or equine professional before continuing to ride in it.

Frequently asked questions

What are the main parts of a Western saddle?

The eight main parts are the tree, horn, gullet, cantle, skirt, fenders, stirrups and rigging. The tree is the internal frame; the horn is the post at the front; the gullet is the opening over the withers; the cantle is the raised back of the seat; the skirts are the panels against the horse's back; the fenders are the wide leathers along the rider's leg; the stirrups hold the feet; and the rigging attaches the cinch.

What is the difference between fenders and stirrups?

The fenders are the broad leather panels hanging along the horse's sides that protect the rider's legs and set stirrup position. The stirrups are the separate foot supports that hang at the bottom of the fenders. They are two different parts, often confused because they move together.

What is the gullet on a Western saddle?

The gullet is the arched opening under the front of the saddle that provides clearance over the horse's withers and spine. With a rider mounted, you should be able to fit two to three fingers between the gullet and the withers.

What is a saddle tree made of?

Traditional trees are wood wrapped in rawhide, which shrinks tight as it dries to form a strong, slightly flexible frame. Modern trees may also be fiberglass or molded synthetic, which are lighter and more consistent between saddles.

Can a saddle pad fix a saddle that doesn't fit?

Sometimes, within limits. A correction or shimmed pad can help when a saddle is slightly too wide, when a horse's topline has changed, or when the withers need more clearance. It cannot correct a tree that is the wrong shape for the horse, and adding padding under a saddle that is already too narrow will increase pressure rather than relieve it.

How do I know what size gullet my horse needs?

Gullet width follows the horse's build: narrow, high-withered horses generally need a narrower gullet with more height, while broad, flat-backed horses need a wider one. Because gullet terminology is not standardized between makers, the reliable test is fitting the saddle on the horse and checking wither clearance and even bar contact.
