Saddle fit in plain language
Western saddle pad fit, explained. How saddle bars carry a rider, and where built-in padding helps.
A Western saddle pad cannot turn a bad saddle into a good one. What it can do is keep the tree bars in contact with your horse's back, which is where most of the trouble starts. This page walks through the bars, the shapes that break contact, and the difference between padding that fills a gap and padding that only lifts the front.
Hero image: horse, Western saddle, and pad from the side
Placeholder. Recommended 2400 x 1050 px.
The one job of the saddle bars
Under the leather, a Western saddle is a tree with two long bars. The bars are the only part of the saddle that rests on the horse, and their whole purpose is to take the rider's weight and spread it across as much back as possible.
The math is simple when the bars touch everywhere. Lose contact along part of the bar and the rest of it carries more, because the rider did not get lighter.
175 lbrider 208 sq inof bar surface 0.84 psiwhen every inch carries load
Figures come from a static simulation published by the American Saddle Makers Association. With 95% of the bar touching, the even figure rises to about 0.88 psi. Real riding adds motion, which we cover below.
How to check pad fit on your own horse
Illustration: saddle tree bars in even contact with the back
Placeholder. Recommended 1600 x 1200 px.
Three ways a Western saddle loses contact
Most saddle-fit trouble is one of these three shapes. Each one takes part of the bar out of the job and hands its share of the weight to whatever is still touching.
Illustration: bridging
Placeholder. Recommended 1600 x 1200 px.
Bridging
Only the front and back of the bars touch.
The back dips behind the withers, or the horse is sway-backed, and the middle of the bar floats. The rider's weight lands on two short patches instead of the whole bar.
About 60% more pressure on the patches that still touch, compared with even loading (1.43 psi against 0.88 psi).
Illustration: too much rock
Placeholder. Recommended 1600 x 1200 px.
Too much rock
Only the middle of the bars touch.
The bar is curved more than the horse, so it rocks on its middle like a boat hull. The front and back lift, and everything the rider weighs goes through one short section.
About 25% of the bar carried the whole rider in the simulation.
Illustration: angle mismatch
Placeholder. Recommended 1600 x 1200 px.
Angle mismatch
One edge of the bar digs in.
Seen from the front, the bars sit at an angle. When that angle does not match the slope of the horse's back, one edge of the bar presses in and a wedge-shaped void opens beside it. Padding cannot change the angle of a tree. It can only fill the void.
A wedge of empty space that a shaped insert can fill, which is where built-in padding earns its keep.
Your horse's shape changes the fit
The same saddle sits differently on every back. Four shapes come up again and again in fit conversations, and each one moves the weight somewhere it should not be.
Photo: horse with a Western saddle, showing the withers and back
Placeholder. Recommended 1600 x 1200 px.
Illustration: downhill horse with the saddle tilted forward
Placeholder. Recommended 1600 x 1200 px.
Downhill horse
The withers sit lower than the hips, so the saddle runs downhill and the rider slides toward the front. Weight piles up at the withers. A pad that is thicker at the front levels the saddle and brings the whole bar back into contact.
High or narrow withers
Tall, narrow withers leave hollows just behind the shoulder where the front of the bar has nothing to rest on. That is a small gap a correction pad is built for, as long as the tree itself is not too narrow.
Dip behind the withers
A low spot behind the withers, common on older horses and sway-backed horses, makes the bar bridge. The middle of the bar needs something to rest on.
Changing topline
Young horses build shoulder muscle, older horses lose it, and a horse coming back from time off changes shape in a season. A pad that fills small gaps buys you fit while the back changes.
Every layer you add has a cost. More thickness raises the rider's center of gravity and lets the saddle roll more, so add only what the gap actually needs.
Why stacking pads and single wither shims backfire
The usual fix for wither pressure is a single shim or a folded towel under the pommel. It feels right. The front of the saddle lifts, the withers get room, and the shoulder moves more freely.
The simulation shows what happens under the bars. The shim lifts the front, and the bar loses contact right behind it. Weight moves to the back of the bar. You have built a bridge out of a shim instead of a sway back, and the pressure numbers look almost the same.
Illustration: bar contact with no shim
Placeholder. Recommended 1600 x 1000 px.
Illustration: bar contact after a single wither shim
Placeholder. Recommended 1600 x 1000 px.
-
Single wither shim
26%
of the bar in full contact
-
Wedge shim
18%
of the bar in full contact
-
Two staggered shims
11%
of the bar in full contact
Lift the front of a saddle that was already level and you tip it uphill. The rider's weight rolls to the back of the bars, and a snug saddle only gets tighter with every layer you add.
What actually helps: fill the real gap
Padding works when it goes where the void is. In the same simulation, a bridging saddle with the void filled in the middle put about 73% of the bar to work. A rocking saddle with the ends filled went from about 25% to about 75%.
Inserts shaped to the void did even better on paper. With the wedge filled, the bars sat in full contact along their length. How much of the rider's weight that insert actually spreads depends on what it is made of, which is why the material under the bars matters as much as the shape.
Illustration: a bridging gap under the bar
Placeholder. Recommended 1600 x 1000 px.
Illustration: an insert filling the gap under the bar
Placeholder. Recommended 1600 x 1000 px.
-
Bridging saddle, void filled in the middle
About 73%
of the bar sharing the load, up from two end patches
-
Rocking saddle, ends filled
About 75%
of the bar sharing the load, up from about 25%
How a Western saddle pad with built-in padding applies this

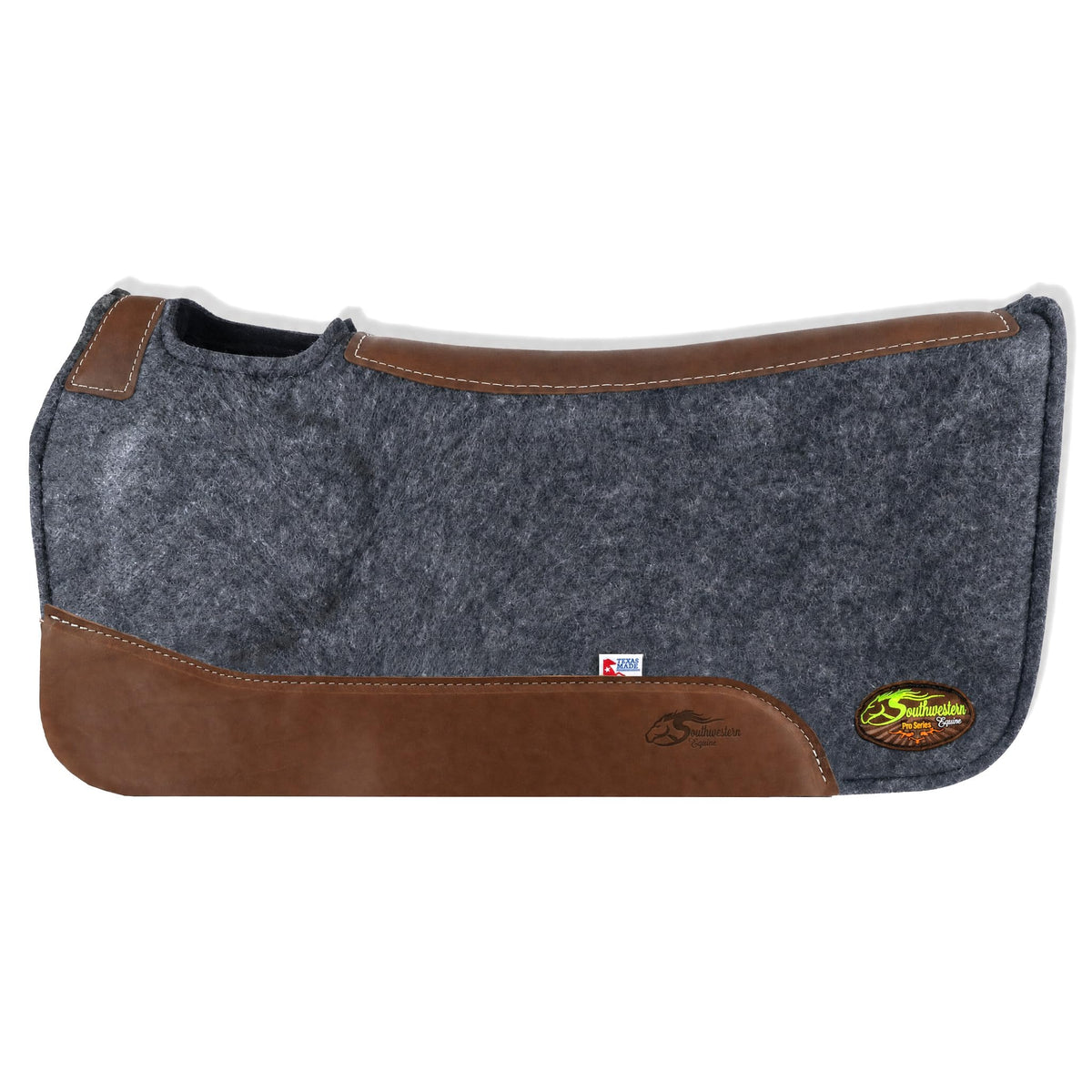

The OrthoRide Correction Saddle Pad is built around the two ideas above: keep the bars in contact, and put the right material under them. It is a 1-inch Western saddle pad with the padding built in, so there is nothing to stack, shift, or fold.
OrthoRide™ Correction Saddle Pad 1"
$179.95
Available in 30" x 30" and 31" x 32".
Poron XRD inserts under the saddle-bar contact area
The inserts sit where the bars press. Poron XRD is soft while you ride and firms on impact, so a hard landing or a fast stop spreads out instead of hitting one spot.
Gap-filling memory foam
Memory foam fills the small spaces where the saddle does not closely match the shape of the horse's back. That is the wedge and the dip from the diagrams above, filled without lifting the whole saddle.
Orthopedic-grade felt bottom and extended wear leathers
The felt cushions and helps manage sweat against the back. Wear leathers protect the places that take friction ride after ride.
The OrthoRide correction pad may help
- Horses with high or narrow withers
- Horses with sensitive backs
- Young horses with developing shoulder muscles
- Older horses with changing toplines
- Western saddles that fit slightly too wide
- Saddles that tilt forward
- Roping, barrel racing, and everyday Western riding
A correction pad can help fill some saddle-fit gaps and redistribute pressure, but it cannot repair a damaged saddle or make every saddle-and-horse combination safe.
The contact percentages on this page come from a published simulation of shims and inserts in general. They are not measurements of this pad.
Fit changes the moment you ride
Every number above comes from a horse standing still with the rider centered. Lean forward into a turn and the load moves toward the front of the bars. If the front had no contact to begin with, the bar tips have nowhere to go but into the horse, and the back of the bar lifts.
In the simulation, a setup with 74% of the bar in full contact dropped to 36% under a forward load. That is why what sits under the bars during the hardest moments of a run matters more than how the saddle looks in the barn aisle.
Poron XRD, the material under the bars in the OrthoRide pad, absorbed up to 90% of impact force in material testing (ASTM F1614). That is a material result, not a measurement of the finished pad.
Post-ride checks in the fitting guide-
Rider leans into a turn
74% to 36%
of the bar in full contact once the load moves forward
Photo: rider leaning into a turn at speed
Placeholder. Recommended 2400 x 1000 px.
What a Western saddle pad cannot fix
A pad may help with
- A saddle that sits slightly too wide
- A setup that tips down in front
- A small gap behind the withers or under the middle of the bar
- A topline that is still changing
A pad will not fix
- A tree that is too narrow or pinches the shoulders
- A broken, twisted, or damaged saddle
- Pain, injury, or persistent pressure at the withers or spine
If your horse is sore, resists the saddle, changes gait, develops dry spots under the pad, or shows white hairs near the withers, stop adding layers. Have the horse, the saddle, and the complete pad setup evaluated by a qualified saddle fitter or veterinarian.
Western saddle pad fit questions
Short answers first. The fitting guide covers the longer check.
What is saddle bridging, and can a Western saddle pad help?
Bridging is when only the front and back of the saddle bars touch the horse and the middle floats over a dip in the back. A pad that fills that dip can help. In the published simulation, filling the middle put about 73% of the bar back to work. If the tree is the wrong shape for the horse, no pad fixes it.
Should I put a single wither shim under my Western saddle pad?
Usually not on a saddle that already sits level. A single shim under the pommel lifts the front but hollows out contact right behind it, leaving about a quarter of the bar carrying full load. Fill the actual gap instead, and have a fitter confirm where the gap is.
Will a thicker Western saddle pad make a narrow saddle fit?
No. More material makes a tight saddle tighter, the same way a thick sock does in a snug boot. A pad can help a saddle that sits slightly too wide, because there is room to fill. It cannot widen a tree.
Does a correction pad help a downhill horse?
It may. A pad that is thicker toward the front levels a saddle that runs downhill and brings the whole bar back into contact. The trade-off is a slightly higher seat and a saddle that can roll more, so check balance and clearance with the rider on board.
What does built-in padding mean on a saddle pad?
The inserts and foam are part of the pad instead of loose shims you place yourself. In the OrthoRide correction pad, Poron XRD inserts sit under the saddle-bar contact area and memory foam fills small gaps between the saddle and the back. Nothing shifts or needs re-stacking before a ride.
How do I check saddle fit before buying a correction pad?
Saddle the horse with the pad you ride in, put the rider up, and look at three things: does the seat sit level, is there clear space over the withers and spine, and can you slide a hand under the bar from front to back without hitting a gap or a hard spot. Our fitting guide walks through each check.
Choose your next step
A pad restores contact. It does not replace a fit check.
Contact percentages and pressure figures on this page are paraphrased from static simulations published by the American Saddle Makers Association (Wither shims, saddlemakers.org, 2012) using a 175 lb rider. They describe shims and inserts in general, not a test of any Southwestern Equine product. Read the original analysis
